High-temperature molten salt systems are employed in a wide variety of industrial applications, linked to energy production and storage, such as concentrated solar power, waste heat recovery, storage plants, fuel cells nuclear, etc. The reactivity of these salts is one of the main issues to address for the employment of affordable steels as constructive materials. In this work, the performance of a polymeric anticorrosion coating based on nanoparticles is analyzed for carbon and stainless steel subjected to solar salt, at 390 and 565 °C, respectively.
The application of the protective coating produced a more homogeneous corrosion layer in both steels compared to uncoated samples. For carbon steel, the spallation of the corrosion layer was mitigated. For stainless steel, the corrosion was significantly reduced. The was confirmed by SEM-EDX confirmed the inclusion of alumina nanoparticles into the corrosion scale and their reaction with stainless steel to form mixed oxides was corroborated by XRD. Molten salts were analyzed by ICP. The obtained results pave the way for anticorrosion coatings based on nanoparticles for high temperature molten salts applications.
Introduction

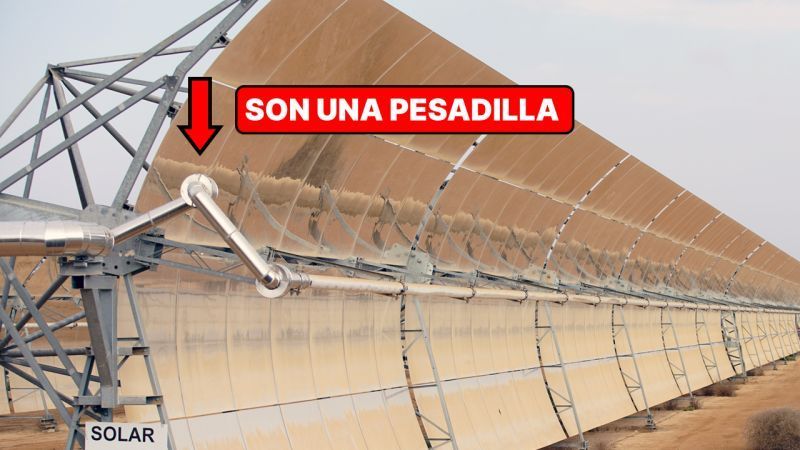

Considering the current worldwide growth in energy demand and the necessity of reducing greenhouse gas emissions, energy sources with low carbon footprint should be promoted. In this sense, both renewable energies and nuclear power can play a vital role. Among renewable energy sources, concentrating solar power (CSP) plants already offer a mature technology based on molten salts to store the excess of solar energy at industrial scale, increasing their dispatchability [1]. Similar molten salts systems have been also proposed for energy conversion being implemented as Carnot batteries into the electrical grid [2]. Moreover, next generation nuclear power reactors are based on molten salt reactor (MSR) with fluoride or chloride salts [3].
The main problem related to the use of molten salts is their marked corrosivity, which leads to the use of special stainless steels and alloys. In this sense, there have been many attempts to reduce the corrosion effect of molten salt on the constructive materials, aiming at cheaper materials for the molten salts systems to improve feasibility of the mentioned above applications.
Solemaini and Galetz tested the application of an aluminum-based slurry, followed by a thermal treatment in Ar atmosphere, as corrosion protection [4]. The aluminized samples of ferritic-martensitic P91 and austenitic SS304 performed better in solar salt, specially the last one. Later, this research group investigated the corrosion prevention ability of that coating for iron and nickel-based materials (P91 steel, SS316L, Inconel 600 and high-purity nickel) in molten NaCl-KCl [5]. The precipitation of secondary phases within the intermetallic compounds formed in the aluminide matrix was found to govern the coating effectiveness. Fe-rich aluminide coatings were found to be more resistant than Ni-rich ones. Thus, the corrosion resistance of coated materials ranged as Inconel 600 < high-purity nickel < SS316L < P91 steel. Audigié et al. investigated a couple of similar coatings, slurry aluminide and electrodeposited nickel-aluminide, on P91 in solar salt [6]. The coated samples exhibited lower mass gain and no evidence of significant spallation. In a following work, Audigié et al. analyzed the anticorrosion performance of a slurry iron-aluminide coating on P91 alloy in eutectic ternary carbonate salt (K2CO3-Na2CO3-Li2CO3) under static and dynamic conditions [7]. The coated samples performed better but the attack on the aluminide coating was not uniform.
Coatings composed of intermetallic compounds have been proposed as well for chloride salts. Gómez-Vidal analyzed several MCrAlX coatings on Incoloy 800H and SS310 in NaCl-KCl, where M = Ni and/or Co and X = Y, Ta, Hf and/or Si [8]. The NiCoCrAlY coating demonstrated the best performance. The corrosion reduction was attributed to the formation of an alumina layer during a thermal treatment prior to corrosion. Similarly, the Ni20Cr coating showed a protective effect compared to uncoated SS304 subjected to ZnCl2-KCl salt [9].
Other types of coatings have been reported in literature. For instance, the performance of a sol-gel coating of yttria-doped zirconia was tested for the P91 steel in solar salt by Encinas-Sánchez et al. [10]. The corrosion results were comparable to uncoated SS304. Recently, Kondaiah and Pitchmani presented a novel approach to corrosion mitigation based on fractal texturized surfaces [11]. Studies with SS316, Incoloy 800H, Inconel 718, Inconel 624 and Haynes 230 in solar salt revealed a corrosion rate reduction of approximately 30 % for ferrous alloys and 80 % for high nickel content alloys.
Different spray coatings have been proposed for protecting the constructive materials of CSP plants in contact with molten salts. Rubino et al. employed a compact plasma spray process for applying a metallic coating on T22 steel [12]. The Inconel 625 coating worked as corrosion inhibitor when exposed to solar salt at 500 °C. The application of a Ni3Al coating by plasma spray on SS347 for protection against solar salt at 565 °C was studied by Yasir et al. [13]. After an initial stage of fast oxidation, the Ni3Al coating stabilized and hindered the diffusion of species from the salt to the substrate and vice versa, which lead to enhanced corrosion resistance. Luo et al. demonstrated the protective behavior of a FeAl coating on SS316L subjected to LiNaK molten carbonate salt at 700 °C [14]. The coating was applied by cold spray method combined with a post heat treatment. The authors attributed the enhanced corrosion resistance to the formation of a LiAlO2 layer on the surface of the coating.
Thermal spray coatings have been also applied for reducing the hot corrosion of boiler steels in molten salts environment. Goyal et al. reported a positive evaluation of a chromium oxide coating reinforced with carbon nanotubes (CNT) for protecting T22 steel in Na2SO4 – 60 wt% V2O5 environment under cyclic conditions [15]. The CNTs filled the pores in the Cr2O3 coating and blocked the penetration of corroding species. After 50 cycles at 700 °C the coatings remained intact, with no spallation of the corrosion layer. Following the same experimental conditions, the performance of several Cr3C2-NiCr coatings was evaluated on T22 steel by Singh et al. [16]. All the coatings provided corrosion mitigation due to the formation of a chromium carbide layer on the coated surface. De la Roche et al. analyzed the corrosion resistance of bilayer coatings deposited by atmospheric plasma spray on Inconel 625 substrates in Na2SO4 –V2O5 environment under cyclic conditions [17]. The coatings consisted in dense Ceria-Yttria Stabilized Zirconia (CYSZ) and Yttria Stabilized Zirconia (YSZ) with different relative thicknesses of each layer. Although the dense CYSZ presented vertical cracks, the thermal protection was preserved.
Graphitization of constructive materials has also proven its potential as corrosion inhibitor. This approach was introduced for carbon steel (CS) tested in Hitec XL salt by Grosu et al. [18]. A significant corrosion reduction was obtained due to the formation of a CaCO3 layer on the material surface [18], [19]. Similar tests in binary nitrate salt resulted in twofold reduction of corrosion rate for graphitized samples and six times when graphite is added directly to the salt [20]. The formation of iron carbide was determined to be the protection mechanism. The graphitization worked as well in harsher conditions, such as carbonate salts for SS310 and SS347, due to the formation of carbides and carbonates, respectively [21]. The carbonates presented higher resistance and produced lower Cr dissolution.
This corrosion mitigation method by forming a protective layer on the constructive materials was also explored for alumina forming alloys (AFA). Gómez-Vidal et al. preoxidized Inconel 702, Haynes 224 and Kanthal APMT to form a passivation layer and then exposed the materials to MgCl2-KCl salt in isothermal and cyclic conditions [22], [23]. In both cases, the pretreated Inconel 702 showed the highest corrosion resistance. Ding et al. employed the same protocol for two Fe-Cr-Al alloys before testing them in MgCl2-NaCl-KCl salt [24]. The alumina scale inhibited the Cr and Fe dissolution and reduced the penetration of corrosive impurities.
Instead of applying any coating to the constructive materials, several authors proposed the addition of different elements and/or compound has been proposed as corrosion prevention method. Frangini et al. demonstrated that adding Mg and Ca to binary eutectic Li/Na carbonate salt resulted in a corrosion reduction of the SS 316 l due to the formation of Mg/Ca-doped lithium ferrite layer on its surface [25]. However, the beneficial effect was found for significant concentrations of additives, 5 and 10 mol%, whereas a detrimental impact was shown for 1.5 mol%.
The addition of sacrificial Mg (1 wt%) to molten MgCl2-NaCl-KCl (60–20-20, mol%) was also demonstrated to reduce the corrosion by Ding et al. [24]. The authors found a decrease in the corrosion rates of ~83 % for SS310, ~70 % for Incoloy 800H and ~ 94 % for Hastelloy C-276. Xu et al. showed that the corrosion of Inconel 625 in NaCl-CaCl2-MgCl2 salt can be reduced by adding MgCl2.6H2O [26]. The corrosivity of the chloride salt was mitigated by in-situ generation of MgO particles and the formation of MgCr2O4 layers. Also in ternary chloride salt, Zhu et al. exhibited corrosion reduction effect for Nisingle bondFe based alloy (HT700) by addition of Al powder [27]. The authors reported an increase of this effect with the increase of the Al content, and the hindering of the outwards diffusion of Cr by a diffusion layer rich in aluminum beneath the corrosion scale.
Alternatively, although the development of molten salts-based nanofluids (NFs) targeted the enhancement of their thermophysical properties, mainly specific heat capacity and thermal conductivity, a corrosivity reduction was found as a side effect. Nithiyanantham et al. analyzed the corrosion of CS in eutectic nitrate salt-based nanofluids with 1 wt% of Al2O3, SiO2 and TiO2 as additives [28], [29]. The authors reported a more than 50 % corrosion thickness reduction for Al2O3 and SiO2 containing NFs and a threefold thinner layer for the TiO2 case, which were attributed to the nanoparticles incorporation into the corrosion layer. Also studying nitrate salts, Ma et al. found a corrosion reduction by testing SS304 in solar salt-based NFs with SiO2 and Al2O3 in 1 wt% concentration [30]. Moreover, Ma et al. reported a corrosion reduction under dynamic conditions of SS304 and SS316L in quaternary nitrate-nitrite molten salt associated to SiO2 nanoparticles addition [31].
Similar effects have been reported for carbonate-based nanofluids. Grosu et al. analyzed ternary eutectic Li/Na/K carbonates doped with 1 wt% of SiO2 nanoparticles, showing a peeling-off reduction and a twofold decrease of the corrosion layer thickness compared to the base salt for SS310 [32]. Also, with 1 wt% of SiO2 nanoparticles but in eutectic Li/K carbonate salt, Iyer found the same reduction compared to the base fluid for SS304 [33]. The same result was obtained by Schuller et al. [34].
A comprehensive review of the effect of molten salts-based nanofluids on the corrosion aspect has been recently carried out by Ibrahim et al. [35].
In recent work, we confirmed, experimentally and by molecular dynamic simulation, that the diffusion of nanoparticles into the constructive materials is one of the mechanisms responsible for the corrosion mitigation of molten salt nanofluids [36]. Based on these insights, in this work, we explore a nanoparticle-based coating developed to enhance and exploit the anticorrosion effect of nanoparticle against a molten salt attack on metallic surfaces.
This work aims to explore the feasibility of this approach for mitigating the corrosion issue related to the molten salts employed in many applications, including storage plants, CSP power plants, nuclear, power cells, hydrogen production, etc. Concretely, the coating has been investigated on A516 Gr70 carbon steel and 304 stainless steel, which are constructive materials for low and high-temperature tanks employing solar salt, respectively. In this sense, the corrosion tests were carried out at 390 °C for carbon steel and 565 °C for stainless steel. The obtained results corroborated the corrosion reduction ability of the polymeric coating based on alumina nanoparticles, leading to a decrease in localized corrosion and corrosion rate.
Section snippets
Materials and preparation
The coating is composed of 1-Methyl-2-pyrrolidinone (NMP), P84 polyimide and Al2O3 nanoparticles. The NMP was purchased 99 % pure from Sigma Aldrich. The P84 polyimide powder SG (solution grade) was provided by Ensinger. 13 nm size alumina nanoparticles were acquired from Sigma Aldrich with a purity of 99.8 %.
A mixture of sodium and potassium nitrates, called solar salt, was employed for the corrosion experiments: 60 % NaNO3–40 % KNO3 (in weight concentration). Sodium and potassium nitrates
Results and discussion
For the sake of clarity, the results and their discussion are separated in two sub-sections, the first one for analyzing the results of carbon steel at 390 °C, and the second section devoted to stainless steel tested at 565 °C.
Conclusions
In this work, the performance of an anticorrosion polymeric coating based on alumina nanoparticles was tested in solar salt (NaNO3–KNO3, 60-40 wt%) at 390 °C and 565 °C for preventing the degradation of carbon and stainless steels, respectively. For both steels, static immersion corrosion tests for coated and uncoated samples in air atmosphere were carried out. The obtained results led to the following conclusions:
•
The application of the coating on carbon steel samples favored the formation of a
CRediT authorship contribution statement
Luis González-Fernández: Conceptualization, Methodology, Formal analysis, Investigation, Writing-Original draft preparation, Writing- Review and Editing, Supervision. Ángel Serrano: Investigation, Writing- Review and Editing. Elena Palomo: Writing- Review and Editing. Yaroslav Grosu: Conceptualization, Methodology, Formal analysis, Writing- Review and Editing, Supervision, Project administration.
Declaration of competing interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgements
The authors express their sincere thanks to Cristina Luengo and Yagmur Polat for their technical support and to Diana Lopez for her assistance with ICP measurements.
Funding
This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.
